Product Specifications

• One Cloth One Membrane:

  • Base Fabric: 100-1000 g/㎡
  • Membrane Thickness: 0.1-1.5 mm

• Two Cloths One Membrane:

  • Base Fabric: 100-600 g/㎡

  • Membrane Thickness: 0.1-1.5 mm

        Multiple Cloths Multiple Membranes:

• • Base Fabric: 100-1000 g/㎡
  • Membrane Thickness: 0.1-0.8 mm

Packaging Specifications

• Width: 1-6 m
• Length: 50-100 m (customizable as per user requirements)

Material

• Composition: Non-woven geotextile and PE film
• Color Options: Black, white

Function

• Primary Functions: Waterproofing, isolation, reinforcement

Keywords

• Non-woven composite, flexible, sealing

Product Introduction

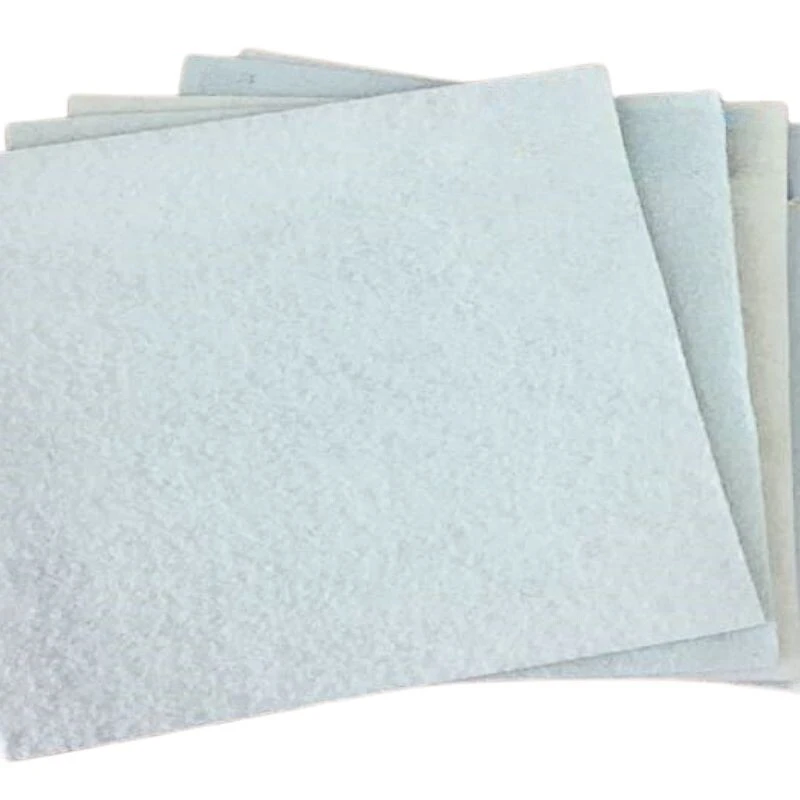

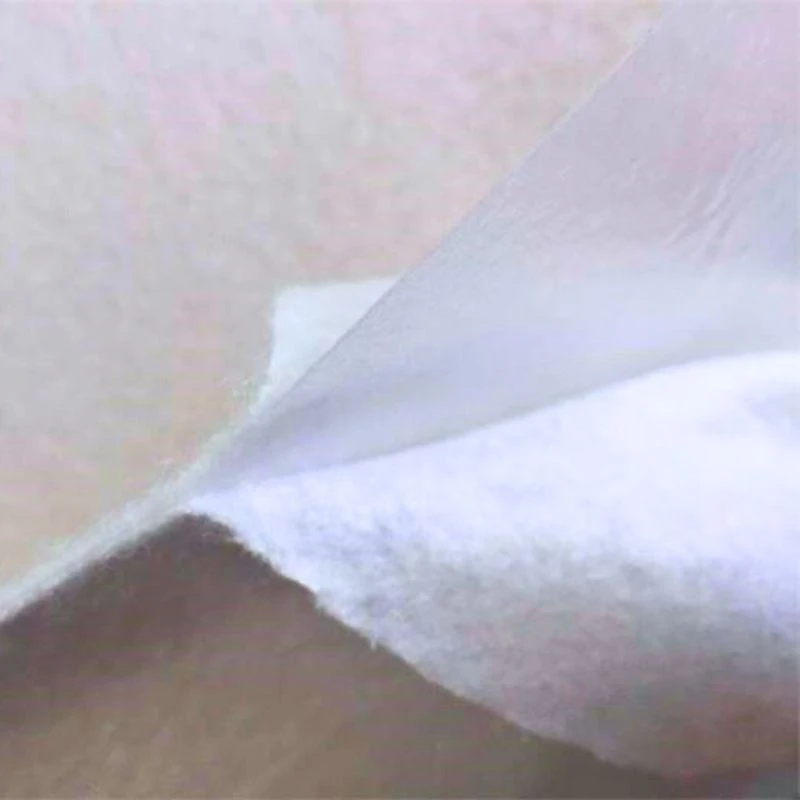

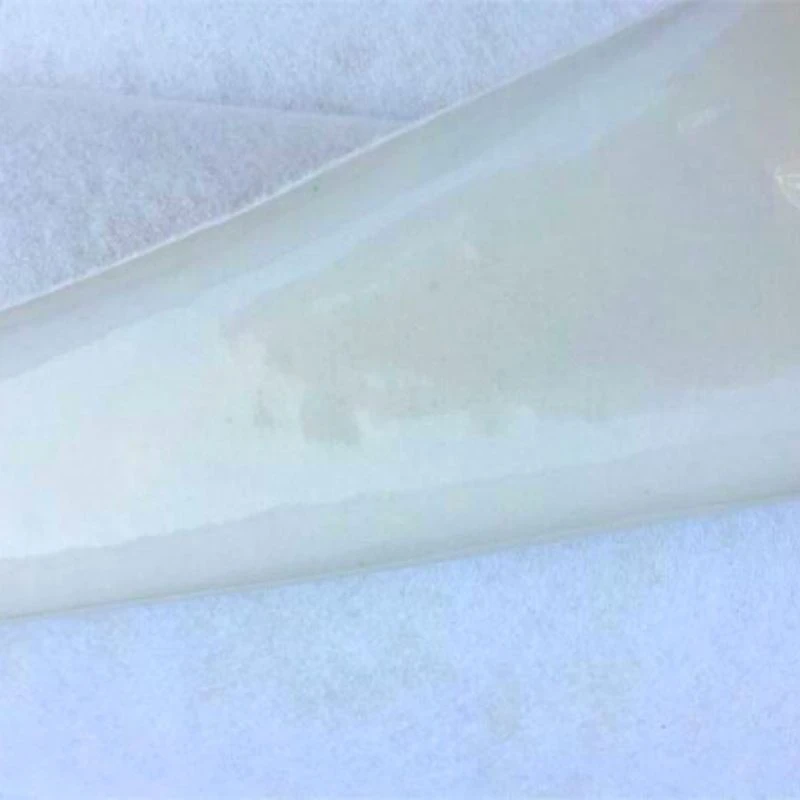

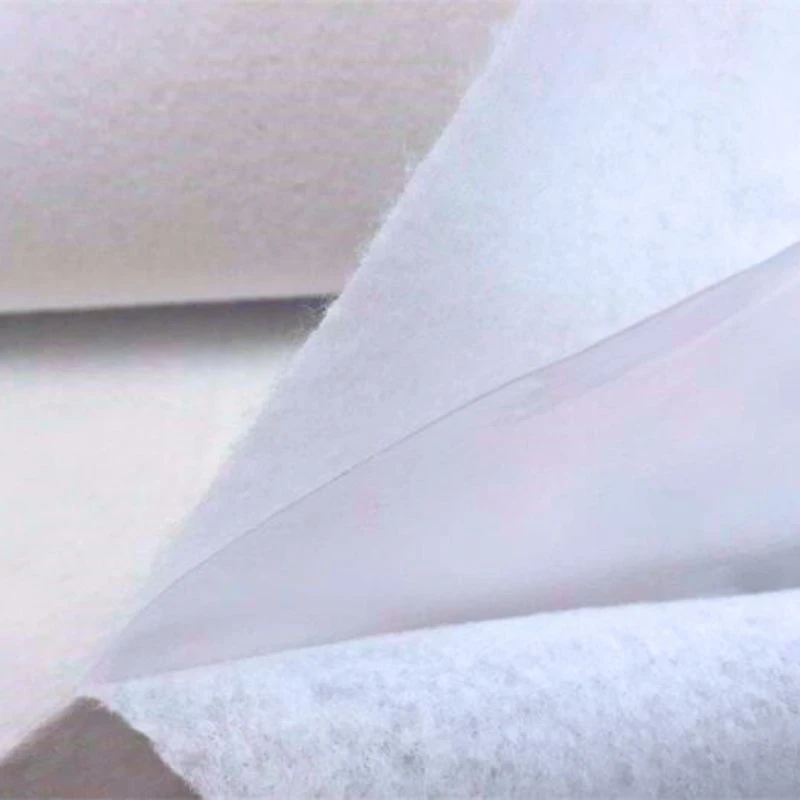

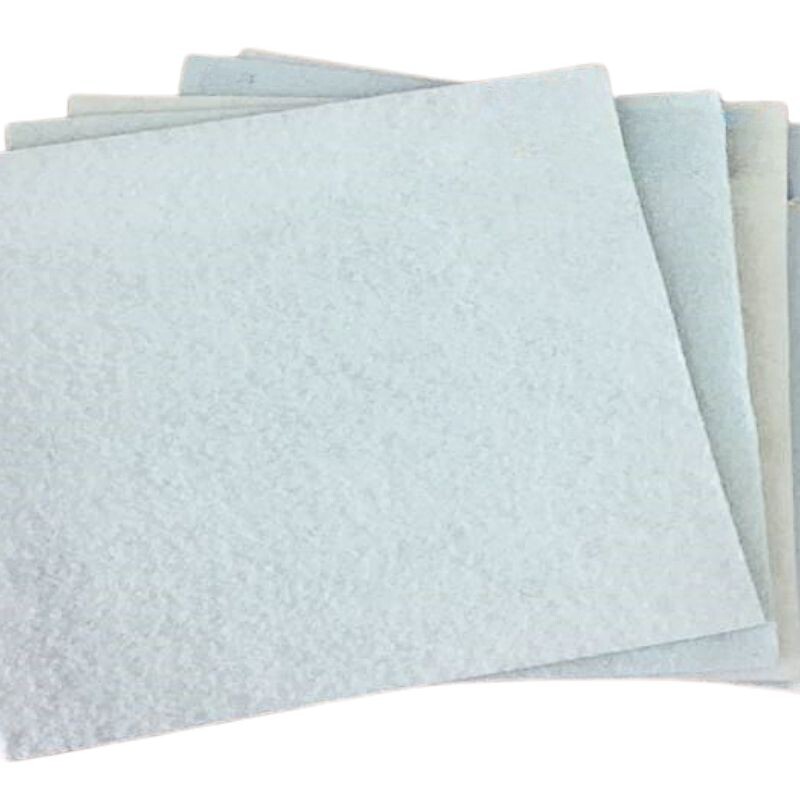

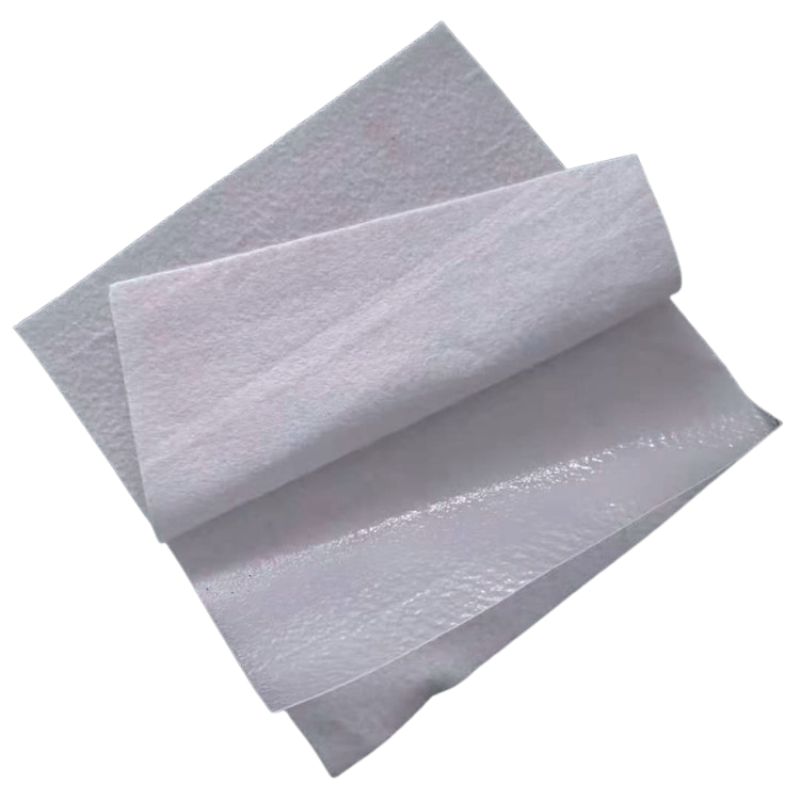

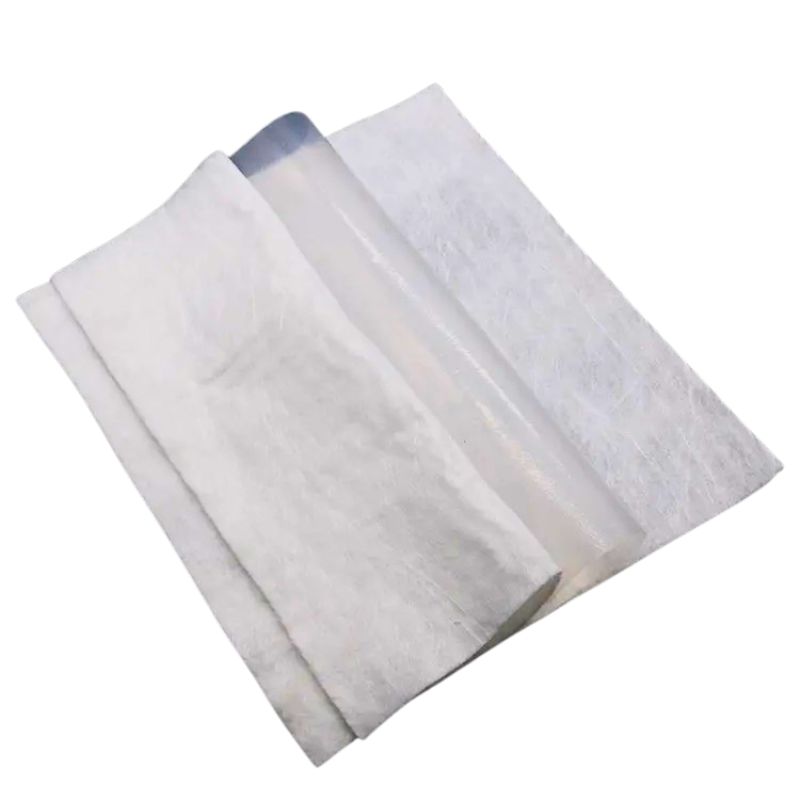

The composite geomembrane is produced from non-woven geotextile as the base material, compounded to create a non-woven composite geomembrane. It is available in various configurations, including one cloth one membrane, two cloths one membrane, and multiple cloths multiple membranes.

Product Features

• Excellent flexibility
• Performs separation, drainage, reinforcement, and protection typical of geotextiles
• Sealing (waterproofing) capabilities

Application Range

• Water Conservancy Projects: Embankments
• Transportation Applications: Tunnels, road construction, airports
• Environmental Protection Projects: Drainage systems, housing
• Primary Functions: Waterproofing, protection, and reinforcement in engineering applications
