Product Overview:

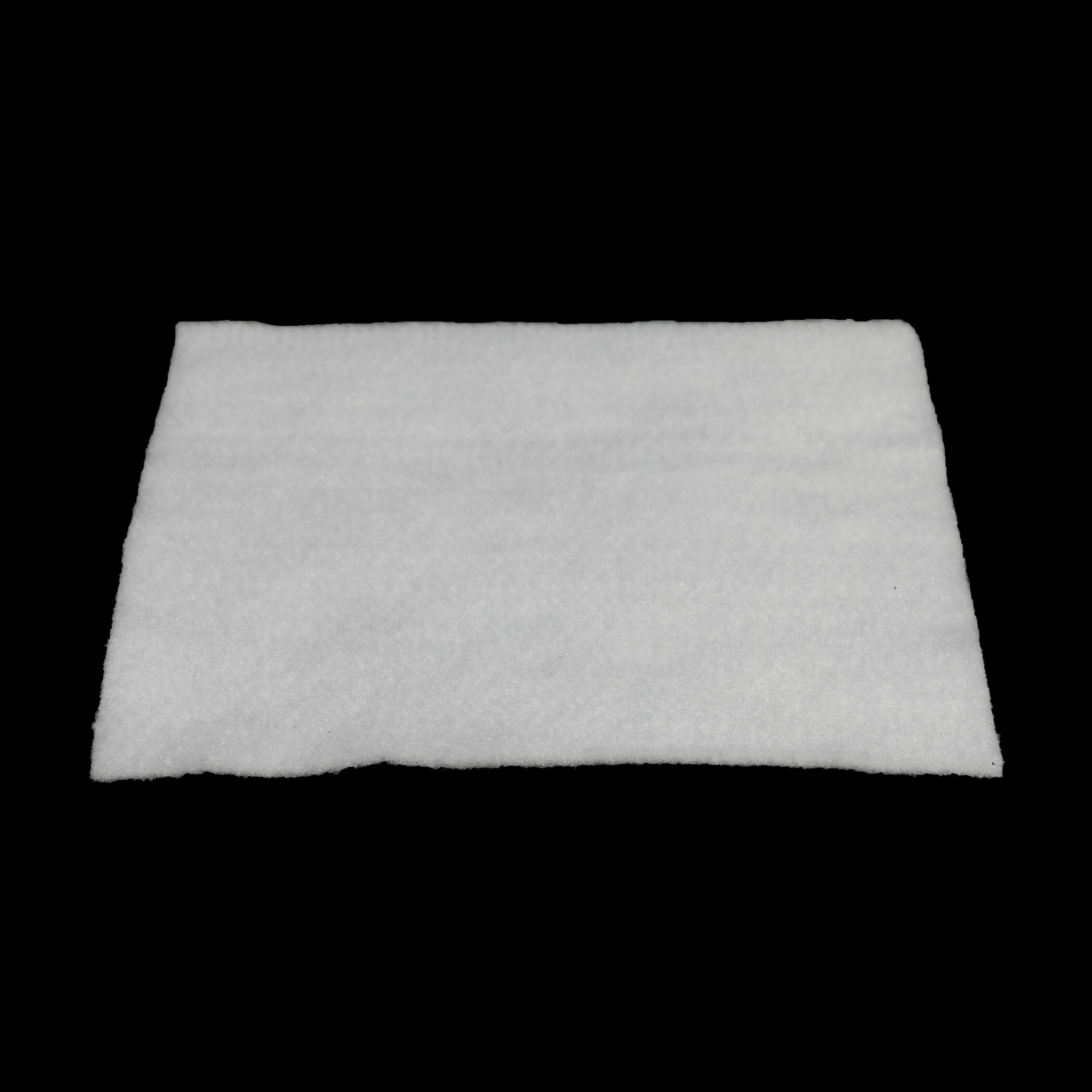

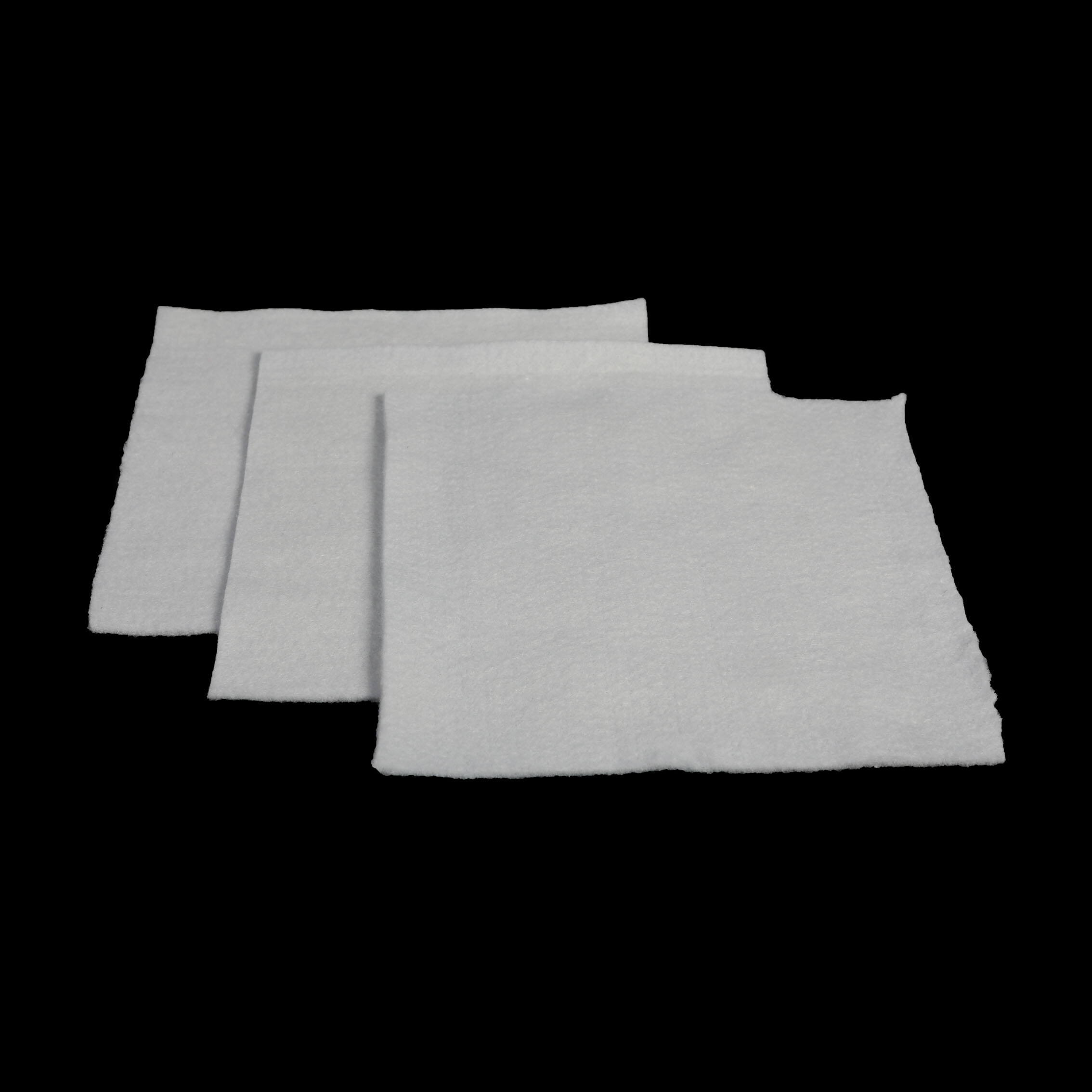

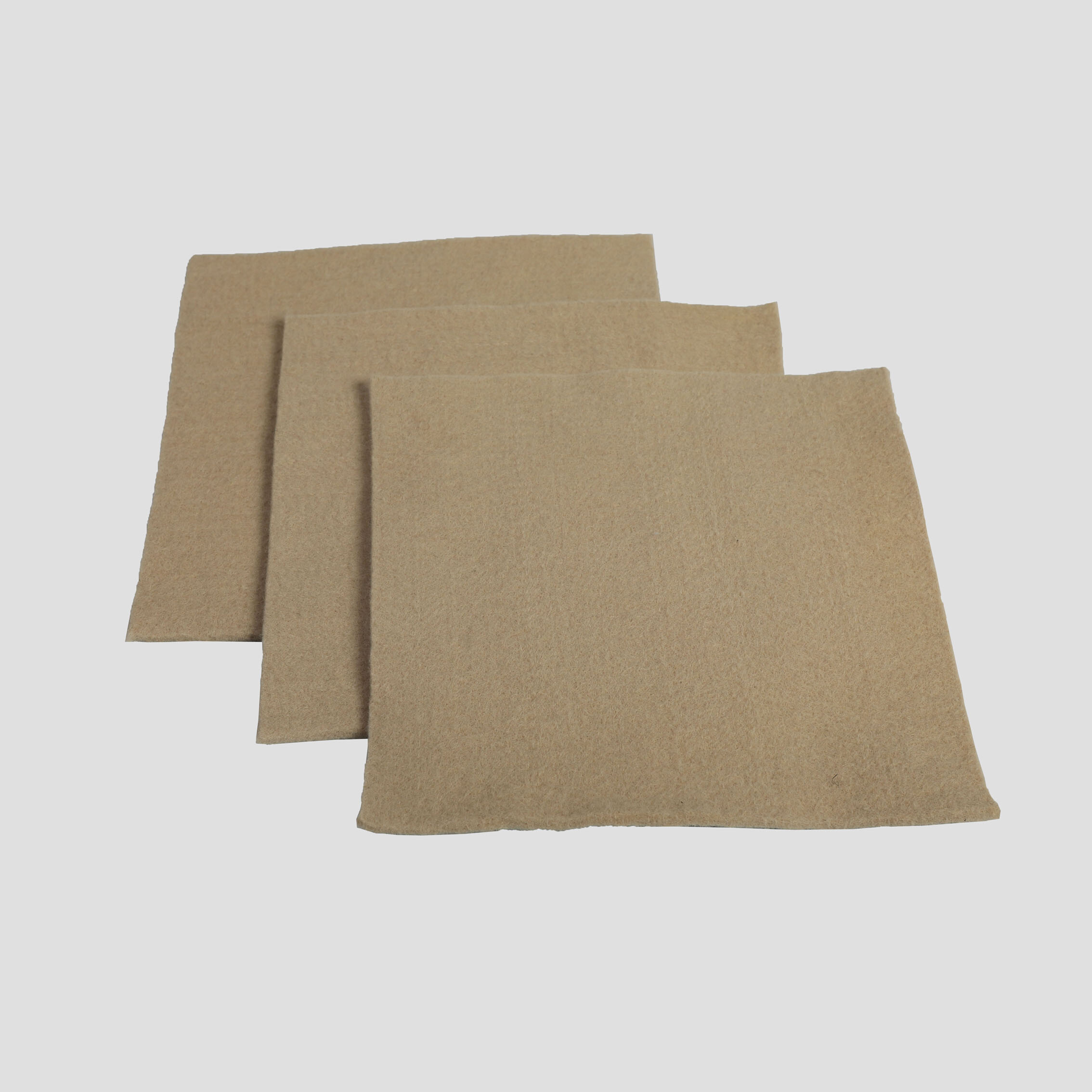

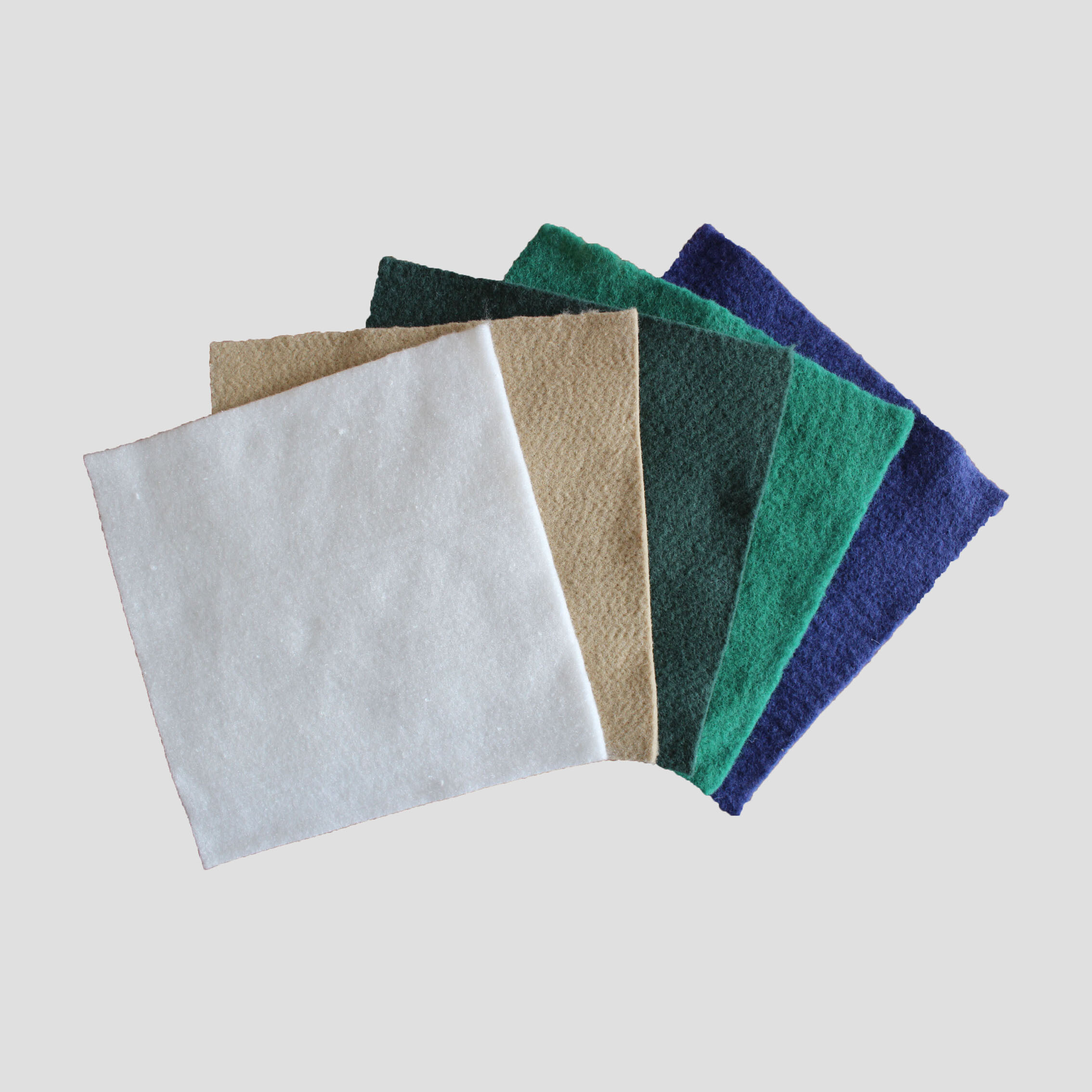

Short fiber needle-punched reinforced nonwoven geotextile is a high-performance geosynthetic material designed to enhance soil stability, filtration, and drainage in various construction and landscaping projects. Made from high-quality polyester or polypropylene fibers, this material is durable, versatile, and easy to install.

Product Features:

1. High Strength and Reinforcement: Provides excellent tensile strength and soil stabilization.
2. Effective Filtration: Allows water to pass through while retaining fine particles.
3. Durable and Resilient: Resistant to UV radiation, chemicals, and microbial degradation.
4. Versatile Applications: Suitable for diverse construction needs, including slopes and drainage systems.
5. Eco-Friendly: Manufactured with environmentally safe materials for sustainable use.

Product Specifications:

• Material: Polyester or polypropylene short fibers.
• Weight Range: 100g/m² to 800g/m² (customizable).
• Width: Up to 6 meters.
• Length: 50-100 meters per roll, adjustable to project requirements.
• Thickness: Varies with weight and application.
• Tensile Strength: ≥ 8 kN/m.

Application Areas:

1. Road and Railway Embankments: Provides soil stabilization and separation.
2. Erosion Control: Prevents soil loss in slopes and riverbanks.
3. Drainage Systems: Enhances water filtration in landfills and subsurface drainage.
4. Land Reclamation: Supports soft soil reinforcement for stable foundations.
5. Waterproofing Layers: Protects and reinforces geomembranes in reservoirs and ponds.

Installation Recommendations:

1. Prepare the Surface: Ensure the installation area is smooth and free from sharp debris.
2. Placement: Roll out the geotextile evenly and align it as required.
3. Overlap and Fixation: Maintain a 10-15cm overlap and secure with pins or staples.
4. Layer Integration: Combine with other geosynthetics or soil layers as needed.
5. Inspection: Check for uniform coverage and repair any tears before finalizing.
